HEPA Filters

Fan powered HEPA filters — HEPA Filters and Air Filtration Systems For a Variety of Contamination Control Applications

CleanAir Solutions, Inc. offers a wide range of cleanroom HEPA air filters and air filtration systems for a variety of contamination control applications and modular, hardwall, and softwall clean room environments. Our cleanroom specialists will create and design an air filtration system with premium HEPA filters and effective air filtration systems to ensure your cleanroom operates with the most advanced equipment available in the industry.

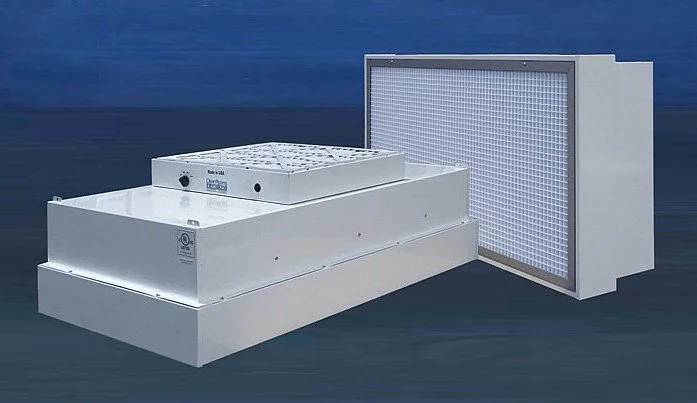

MicroSound GS photo.jpg — Fan Powered HEPA Filters

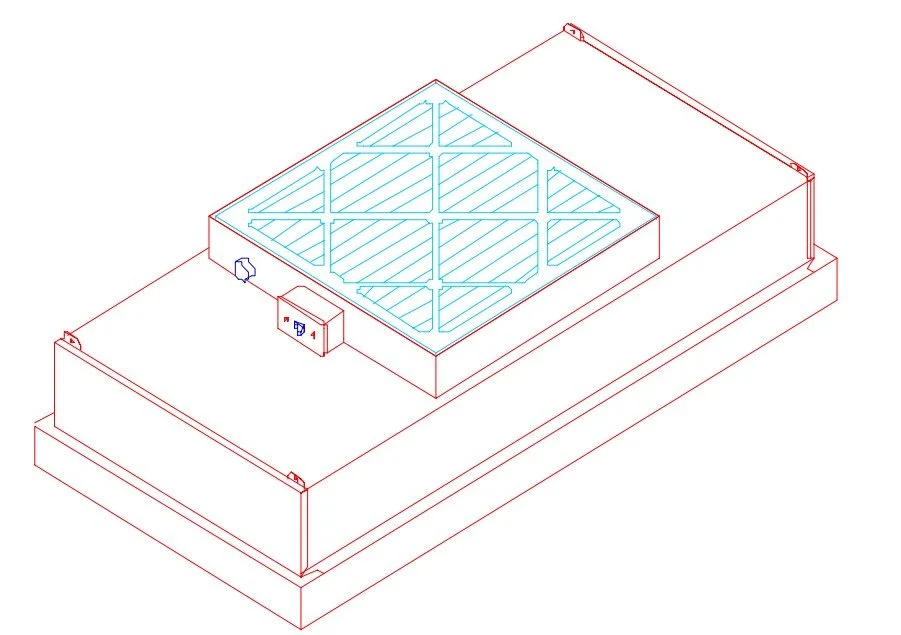

Self-powered HEPA air filtration systems have become a popular substitute for terminal air filtration units because of their flexibility and ease of installation. Our standard fan powered HEPAs MicroSound NCR units include variable speed control, choice of power cord or junction box. Our MicroSound GS fan powered HEPA filters offer quick-release latches that permit rapid Room-Side Replacement of the air filtration media. Most cleanroom supply and contamination control companies offer these cleanroom HEPA filter options as a premium, but we offer them as a standard. You can also choose from 115V, 277V or export voltages to meet your electrical needs. To make sure your cleanroom air filters are running at all times, power indicator lights are also available for room side monitoring.
We offer hundreds of HEPA fan filter units for cleanrooms in special sizes to meet your exact requirements. Whether you require just one cleanroom HEPA filter unit or hundreds, we can fill your custom specifications.

Terminal Diffusers

Terminal Diffusers ULPA and HEPA air filter modules are designed to provide unidirectional airflow from tee-bar ceilings. Standard air filtration modules come in 24 in. x 24 in. and 24 in. x 48 in. sizes with either 10 in. or 12 in. diameter collars. The HEPA air filter efficiencyour is rated at 99.99% at 0.3 microns and the ULPA air filter efficiency is rated at 99.9995% at 0.12 microns. HEPA cleanroom air filters are available in three filter pack depths: 53, 70, and 100 mm.

LP240003 photo edited.jpg — Low-Profiled HEPA Filters

Room in a room applications sometimes make it difficult to fit a standard size air fan/filter module above the room. Typical office t-bar is hung at 9 feet above the finished clean room floor. To place a cleanroom within that envelope at a minimum 7’ inside ceiling height only leaves 24” of interstitial space. This is a perfect application for low-profile air filtration modules. Low-profile HEPA cleanroom filtration units are designed with dual motorized impellers to provide a slim package with an overall height of only 9.5 inches.

AirLink control system.jpg — AirLink Controls

Airlink Control Systems are designed to control filter units from a remote console or panel. Linked individually or in groups, an operator can increase or reduce airflow to a selected area and utilize the set back feature during off-peak hours, resulting in lower operating costs. Our exclusive state-of-the-art, reasonably priced fan filter control systems utilize our standard 115 volt and 277 volt, motor blower units without using high cost DC motors. Depending upon the number of air filtration units required and local electricity rates, payback is often one year or less.

Fan Filter Control System

Our AirLink Energy control savings system allows your cleanroom to operate at the lowest operational set point during off-peak hours and save up to 50% on your energy output.

EEF HEPA Filtration

Designed for hospital isolation rooms, surgery suites, Pharmaceutical compounding, Biotech or Medical Device applications where sterility is critical. When using this cleanroom HEPA air filtration system, particles and bacteria are charged due to ion flux inside an ionizing field - where some of the bacteria are killed upon entry into the grid. The charged particles and bacteria are highly efficiently filtered -up to 1000 times lower penetration than conventional filters with the same pressure drop and flow rate. Bacteria caught on the filter are subjected to a continuous dose of ionizing radiation and are thus killed. This filter system is rated at 99.999999+% DoP, providing virtually particle free air -the Cleanroom. In addition, this filter has enough power to allow for double HEPA filtrationair re-circulation and exhaust and exceeds CDC guidelines for AFB isolation.
Please contact one of our environmental service / cleanroom specialists at CleanAir Solutions to request a no-obligation quote on any of our cleanroom filters, hepa filter products or air filtration systems.
